Protocol description showing our ability for programming at the lowest level.
The way of communication with the DSP (TMS320F2812) is through an 8K dual port chip mapped to address 0xC0000. Internal mapping goes as follows:
Location Offset Content Symbol
DP_IM_ALIVE_TOGGLE 0x0000 ImAlive
DP_CMD_ID 0x0001 cmdId
DP_CMD_DATA 0x0002 cmdData[]
DP_REPLY_ID 0x1001 replyId
DP_REPLY_DATA 0x1002 replyData[]
(See Intruder protocol)
DP_READING 0x1F38
DP_QTY 0x1F39
DP_INTRUDER 0x1F3B
Every 10 ms, the command poll service (cmdPollSrv) software interrupt is activated by a DSP timer. ImAlive toggles on every entry to the service routine. By monitoring this location can it can be known if the DSP is active.
The service will check for the content of location DP_CMD_ID, cmdId, if different than 0, then a command has been received. Commands may have associated data or even subcommands. Data associated to a command must be loaded as an array (cmdData[]) starting at location DP_CMD_DATA, before the command, cmdIdx, is entered into location DP_CMD_ID.
When the DSP is done executing a command and is ready for the next, it writes a 0 to cmdIdx in location DP_CMD_ID.
Some commands may request data. If so, data will be returned starting as array replyData[] starting from in location DP_REPLY_DATA. In DP_REPLY_ID, the DSP software will return the command number incase everything went OK, in case of error the command number plus 0x1000 will be returned.
The DSP will only reply when spoken to, so DP_REPLY_ID need not be monitored.
There are two interrupts being serviced by the DSP, one (Int1) is triggered by an external 250 Hz clock and the second by 1 KHz pulses from an internal clock.
Int1 tasks:
Int2 tasks
If the Master interrupt is disabled only task 1 of Int1 is executed.
Syntax:
cmdId = 1
cmdData[0] = 0/1 for enabled/disabled
0x2 and 0x3 are for word input and output respectively, while 0x4 and 0x5 are same for bytes.
For cmdId = 0x2 and 0x4 the syntax is:
cmdData[0] = IO offset address
cmdData[1] = word or byte value to output
For cmdId = 0x3 and 0x4 the syntax is:
cmdData[0] = IO offset address
the reply syntax is:
replyID = 0x3 or 0x4
replyData[0] = word or byte value read
The Bit 3 application uses 4 independently resettable timers and a system tick, which are incremented every 4 milliseconds. It takes one parameter in cmdData[0], if is 0 or greater than 4, all timers and the system tick are reset. If 1, 2, 3 or 4, timers A, B, C or D are reset respectively..
Return A, B, C, D timers and the system tick an array of 5 longs,, starting at DP_REPLY_DATA.
Reply syntax:
replyID = 0x7
replyData[0] = Timer A
replyData[1] = Timer B
replyData[2] = Timer C
replyData[3] = Timer D
replyData[4] = System Tick
Returns frequency in replyData[0].
cmdData[0] holds the value to be set.
0x9 0/1 Enables/Disables periodic reading of all eight channels, one every 4 ms.
0xA 0/1 Set reading mode to Unipolar/Bipolar.
0xB 0/1 Sets the range to 20v/10v
0xC W Sets code base for the AD MUX, nibble selects the channel to be read.
These commands have no reply.
The 4 Synchro registers are read one at a time every 4 ms and saved to a memory array. This commands returns these readings starting at DP_REPLY_DATA.
replyId = 0xD
replyData[0] = Synchro data channel 0
replyData[1] = Synchro data channel 1
replyData[2] = Synchro data channel 2
replyData[3] = Synchro data channel 3
The periodic readings of the 8 AD converter channels are returned as an array starting at DP_REPLY_DATA.
replyId = 0xC
replyData[0] = AD converter data channel 0
replyData[1] = AD converter data channel 1
replyData[2] = AD converter data channel 2
replyData[3] = AD converter data channel 3
replyData[4] = AD converter data channel 4
replyData[5] = AD converter data channel 5
replyData[6] = AD converter data channel 6
replyData[7] = AD converter data channel 7
Returns the Root Mean Square the voltage on a channel. There are two modes: signal and noise.
Syntax:
cmdData[0] = channel from 0 to 7
cmdData[1] = mode
The algorithm is based on the Root Mean Squares definition:
Vrms = Ö (SN(Vn-Vavg)2/N)
Where Vavg is the average voltage and N the number of readings.
Signal Mode:
Here the signal is known to be approximately sinusoidal. To improve accuracy, the samples will only be valid for collecting after a first zero crossing from – to +. Valid data must have, not only a value greater than a threshold, but the increment from the previous reading must be also greater than a threshold. This is necessary because the signal to be measured is intermittent and the off parts must be disregarded.
The ADC will be sampling every 68 ms for 150 ms (2200 samples). The last zero crossing will be registered and uses as N in the above formula, so that only full cycles will contribute to the calculations
Noise Mode:
In this mode zero crossing is meaningless and there’s no off time. Also there is a 2 Hz pulsed interference from the transmitter included in this noise. To avoid missing these pulses, samples must be collected for at least a ½ second..
Sample rate in noise mode will be 272 ms, so 2200 samples will cover more than half a second. The ADC will be reading from a sample and hold circuit driven at 200Hz (fs).
If we assume an audio bandwidth (Bw) from 200 to ~8KHz. and consider a fairly constant power density (pd) within that band we can make an estimate of the actual noise power from our measured RMS value.

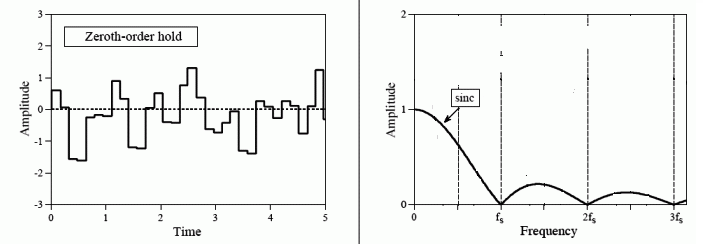

A zero order sample and hold frequency (fs) of 200Hz, applies a filter with a frequency response described by: (ref (http://www.dspguide.com/ch3/3.htm))
F(f) = sin((p/fs)f)/
(p/fs) f = sinc((p/fs)
f)
Rendering a power spectrum
W(f) = pd * sin2((p/fs)f)/ ((p/fs) f)2
Integration from 200 Hz to 8 KHz yield the power of the sampled signal, that for this case, is as good as doing it from 0 to infinity. But, since the integral 0 to infinity of sin2(x)/x2 is known to converge to p/2:
Wrms = pd * fs/2 Or Pd = 2 * Wrms/fs
The real noise power (Wnoise) in the band is Bw*pd, so :
Wnoise = 2 * Bw * Wrms/ fs ~ 80 * Wrms
So the real noise power should be 80 times that of the measured RMS value. For example is the measured value is 6 mv in 8 ohms, or 4.5 mW, the real power would be 360 mW. In this case the signal to noise ratio with a 1W output would be of 34 dB..
Reply Syntax:
replyId = 0xF
*DP_REPLY_DATA = pointer to a double holding the RMS value.
Uploads the queue of a logical transmission channel.
Syntax:
cmdData[0] = logical channel
cmdData[1] = queue tail (label count)
cmdData[2] = arinc dword[0]
·
·
·
cmdData[2+19] = arinc_dord[18]
cmdData[2 + 20] = period[0]
·
·
·
cmdData[2 + 20 + 19] = period[18]
Set the xmit/recv flag values res[ectively.
Syntax:
CmdId = 0x11 or 0x13 for xmit/recv flags.
CmdData[0] = xmit/recv flag values.
These commands read the status of transmit and receive flags respectively.
Return Syntax:
replyId[0] = 0x12 or 0x1 for xmit/recv flags.
replyData[0] = xmit/recv flag values.
Commands have no parameters.
Each of the 19 logical channels is set to go in high or low speed. The array is set using command 0x15 with the following syntax:
Syntax
cmdId = 0x15
cmdData[0] = 0/1 low/high speed for channel 0.
·
·
·
cmdData[18] = 0/1 low/high speed for channel 18.
For reading the current speed array:
Syntax:
cmdId = 0x16
no parameters
Return Syntax:
replyId[0] =
replyData[0] = 0/1 low/high speed for channel 0.
·
·
·
replyData[18] = 0/1 low/high speed for channel 18.
This command has five subcommands for performing this number of different initialization routines.
Syntax:
CmdId = 0x17
cmdData[0] = Subcommand 1 – 5
cmdData[1] = Receiver channel number for subcommand 3
Subcommand 1 initialize xmit and recv devicess
Subcommand 2 Reset logical queues
Subcommand 3 Flush receiver channel
Subcommand 4 Flush all receiver channels
Subcommand 5 Reset Multiplexers
Set the speed for a specified receiver channel.
Syntax:
CmdId = 0x18
cmdData[0] = Channel number 0 – 5
cmdData[1] = 0/1 low/high speed
Downloads the queue from a logical transmission channel.
Syntax:
cmdData[0] = logical channel
Return Syntax:
replyId = 0x20
replyData[0] = queue tail (label count)
replyData[1] = arinc dword[0]
·
·
·
replyData[1+18] = arinc_dword[18]
replyData[1 + 19] = period[0]
·
·
·
replyData[1 + 19 + 18] = period[18]
Returns either the info of 19 most recent labels received for a single channel or for all the channels. The info includes the measured period and system tick value as a time stamp.
Syntax:
CmdId = 0x21
CmdData[0] = Channel
Return Syntax for a valid channel (0-5):
replyId = 0x21
replyData[] block for specified channel starts here
Return Syntax for and invalid channel >5 (returns all channel blocks):
replyId = 0x21
replyData[0] = total word count
replyData[1] block for channel 0 starts here
replyData[p=(1+ blkSize(0))] block for channel 1 starts here
replyData[p=(p+ blkSize(1))] block for channel 2 starts here
replyData[p=(p+ blkSize(2))] block for channel 3 starts here
replyData[p=(p+ blkSize(3))] block for channel 4 starts here
replyData[p=(p+ blkSize(4))] block for channel 5 starts here
Structure of a Block for single channel n
replyData[p] = labelCount
replyData[p+1] = labelArrayChn[0]
·
·
·
replyData[p+1 + labelCount] = Arinc_dword_Chn[0]
·
·
·
replyData[p+1 +3*labelCount] = periodChn[0]
·
·
·
replyData[p+1 +4*labelCount] = tickChn[0]
·
·
· { blkSize for Ch n}
replyData[p+(1 +6*labelCount)] = tickChn[labelCount-1] (End of block for Ch n)
Every entry to a transmit or receive routine increments a counter. This counter indicate activity to the host program and this command return the current value of such counters. The command has no parameters.
Reply Syntax:
ReplyId = 0x22
ReplyData[0] = xmit counter
ReplyData[1] = recv counter
Transmits an Arinc Double Word on a specified logical channel, as soon as its associated physical channel is ready. CmdId = 0 will only be returned when transmission is done.
Syntax:
CmdId = 0x21
cmdData[0] = Logical channel number 0 – 18
cmdData[1] = ARINC lo-word
cmdData[2] = ARINC hi-word
Five streams may be received on Channel 0:
0. Maintenance
Command 0x25 turns on the collection and sets the data count of one of the 5 streams. On streams 1 to 4, which consist of a single label series, data is collected until it reaches a specified count and then it is turned off.
Maintenance is different, it may have several labels. So, to specify the stream, it uses an SOT (Start Of Text the 0x020000FC) and an EOT (End Of Text 0x040000FC) DWORD. Also, in this case, the count may not reach the one specified.
Syntax:
CmdId = 0x25
cmdData[1] = Stream Type (0-4)
cmdData[2] = data count.(cnt)
During collection the HOST can poll the progress with CmdId 0x29.
To deliver the collected data to the host, command 0x24 must be invoked. If CmdId 0x24 is invoked before collection is finished, replyData[0] will return false (0). Once finished, it will return the first element of the data array.
Syntax:
CmdId = 0x24
cmdData[1] = data chunk size.(cnt)
The difference between reading, for instance, EEPROM to reading Maintenance data, is size. While EEPROM data array can fit entirely into the dual port, maintenance data, being potentially larger than 0xfff words, can not. So it must be read by iterating cmdId 0x24. This command allows specifying the maintenance data chunk you want to read, it returns the actual chunk size, which could less than the one requested if at the end of the data array. A Chunk size of 0, will be interpreted as a request for all collected data.
Return Syntax:
replyId = 0x24
replyData[0] = 0 if collection unfinished/Data dword[0] if collection is done
·
·
·
replyData[cnt] = Data dword[cnt-1]
If cmdId 0x24 is issued beyond the last chunk of data, without restarting a new data collection, it will return false, the array is returned only once.
EEPROM data can be transmitted either by using cmdId 0x23 (Transmit immediate) or by this one. The EEPROM dword array supplied will be transmitted at 4 ms interval.
Syntax:
CmdId = 0x26
cmdData[0] = EEPROM data count.(cnt)
cmdData[1] = EEPROM dword[0]
·
·
·
rcmdData[cnt] = EEPROM dword[cnt-1]
Since the streaming of data may not be immediate in human terms, a progress indicator becomes necessary. This command will return the number of Channel 0 stream dwords that have been received. It has no parameters
Return Syntax:
replyId = 0x29
replyData[0] = Maintenance dword count.
CmdID 0x2A initializes the loader mode in the DSP and sends the RTS word to TCAS, the DSP wait for the CTS word from TCAS for up to 100 ms, after which it will return 0x00000000 in replyData[0] and replyData[1], the host will repeat the command. If a CTS with a block count different than zero is received within one of the 100 ms periods, the DSP will be return it as a long in replayData.
Syntax:
CmdId = 0x2A
cmdData[0] = RTS Least Significant word
cmdData[1] = RTS Most significant word
Return Syntax:
replyId = 0x2A
replyData[0] = valid CTS ARINC word or 0 if timeout.(100 ms)
CmdID 0x2B sends a single block. The RTS can request sending up to 5 blocks. A block consists of an initial label (220) called DF (Data Follows), which bears the information of the Intermediate Words (IW) count and then the Final Word (DF). The labels in the block will be transmitted at a 2 ms interval. The DSP will repeated every the FW 60 ms until a valid CTS is received.
Syntax:
CmdId = 0x2B
cmdData[0] = DF
cmdData[2] = IW[0]
·
·
·
cmdData[2n+2] = IW[n]
cmdData[2n+4] = FW
Return Syntax:
replyId = 0x2A
replyData[0] = valid CTS ARINC word or 0 if timeout (10 secs).
CmdID 0x2C will notify the DSP that the load task is over and that it must return to normal operation. This command has no reply.
Syntax:
CmdId = 0x2C
Receiver Ch 5 is constantly being polled for intruder data. SOT of an intruder data block is 0x120000EF and the EOT is 0x030000EF. Between this two ARINC words, the data for up to 32 intruders may be sent. There are 3 labels (Octal 130, 131 and 132) for each intruder within the block. The maximum size of the block being 196 words:
196 = (32 intruders x 3dwords + SOT + EOT) *2 words
This information is double buffered. While being collected, it is stored in a 196 word RAM memory buffer dynamically allocated upon object construction. Upon receiving the SOT, this information is transferred to a second buffer, also of 196 words, at the high end (0x1F3B) of the dual port memory, where it can be directly read by the host without the latency of a command. Th DSP software will write at location 0x1F39, the number of ARINC DWORD’ s (including SOT and EOT).
To avoid writing in the buffer while it is being read, the host will set location 0x1F38 to 1, the DSP software will hold while this location is different than zero.
Once the host has read the buffer, it will set location 0x1F39 to zero, then it will poll this location until it the DSP writes new info onto it. This way, it will known when there’s something to be read. The DSP software will transfer the data first and write the ARINC DWORD count for last, making sure that when the host sees a value there different than zero, the data is ready to be read.
